您的位置: 主页 > 产品展示 > 单轮 > AGV Wheel
AGV Wheel

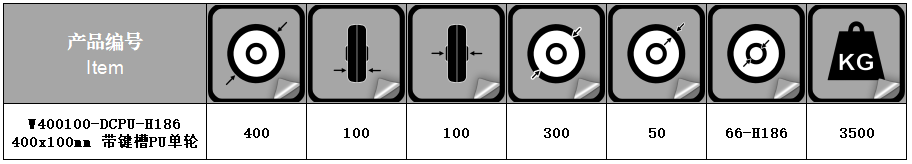

产品名称 W400100-DCPU-H186 400x100mm 带键槽PU单轮
产品编号 W400100-DCPU-H186
产品尺寸 400
产品载重 3270KG
产品应用 矿山机械,设备制造,木工机械,机动游乐场,特种装备,航空航天
产品形态 AGV Wheel
材质 聚氨酯
硬度 95 Shore A
适应温度 -25~65摄氏度
其他应用 支持多种定制
模型链接支持复制分享,全平台兼容访问
Model link supports copy & sharing with cross-platform compatibility
W400100-DCPU-H186 400x100mm 带键槽PU单轮
W400100-DCPU-H186
Scan QR code to view 3D model
Compatible with all mobile devices • 支持所有移动设备扫描

   首先,江龙精密脚轮在这里想告诉我们亲爱的客户,如果您没有看到适合您的机器人的驱动轮,请与我们联系,订购即可!高速、耐高温、自重轻、与轮芯结合良好、不打滑、抗噪音、减震、节能是影响AGV驱动轮的重要因素。江龙在制造真正的高档驱动轮时,始终牢记这些。

              Firstly, Jianglong Precision Integrated here want to tell our dear customers that if you do not see a driving wheel which suit for your robot, just contact us, order made is OK! High speed, high temperature resistant, light self-weight, good bonding for the tire with wheel core, no-sliding, anti-noise, shock absorbing, energy saving... are important factors for AGV driving wheel. JIANGLONG always keep these in mind when we manufacture a real high grade driving wheel.


AGV车轮最重要的因素是什么?

What are the most important factors for an AGV wheel?


        1)如果你以前有过使用劣质AGV车轮的经历,也许你知道当车轮以高速行驶时,车轮踏面温度会非常高,有时在极端情况下车轮踏面会从轮芯上脱落。江龙精密集成AGV车轮采用专利配方车轮材料和独特的车轮粘接技术,防止此类不愉快的情况发生。江龙精密集成从2009年开始为全球多个知名叉车品牌制造聚氨酯车轮,拥有“江龙精密集成技术”,擅长一站式制造的整体解决方案。

              1) If you have an experience that used a poor quality AGV wheel before, maybe you know that when the wheel runs by a fast speed the wheel tread temperature will be very high and sometimes in an extreme case that the wheel tread broken down from the wheel core.jianglong Precision Integrated AGV wheels adopt patented formulated wheel material and unique wheel bonding technology to prevent such unhappy case.

jianglong Precision Integrated started from forklift polyurethane wheel manufacturing for several well-known forklift brands around the world since 2009, we have the "jianglong Precision Integrated know-how" and good at the integrated total solution for the one station manufacturing.


        2) 车轮的空间通常限制在AGV底盘下。我们总是牢记这一点。通常你可以发现我们的轮子有一个小的旋转半径。这就是重点。

        2)The space for a wheel is normally limited under the chassis of the AGV.

We always keep this in our mind. Generally you can find that our wheel with a small swivel radius. This is the point.


      3) 灵敏的旋转在急转弯时具有高效的旋转功能。来自左右两侧的力有时比前面和后面的要大。使用寿命长的AGV车轮必须具有坚固耐用的转向。转动机构是脚轮制造企业的核心技术之一

      3) A sensitive swivel head features an efficient rotating function when in a sharp direction turning. The force from left and right sides sometimes is bigger than from front and back. A long life service AGV wheel must with a tough and durable swivel head. The structure mechanism inside the raceway is one of the core technologies for a caster wheel manufacturer.


      4) 高品质是我们的一切。我们从不在车轮上使用“回收”轴承。

      4) High quality is everything for us. We never use a "RECYCLED" bearing in our wheel.

8T AGV Driving wheel of aerospace intelligent equipment system

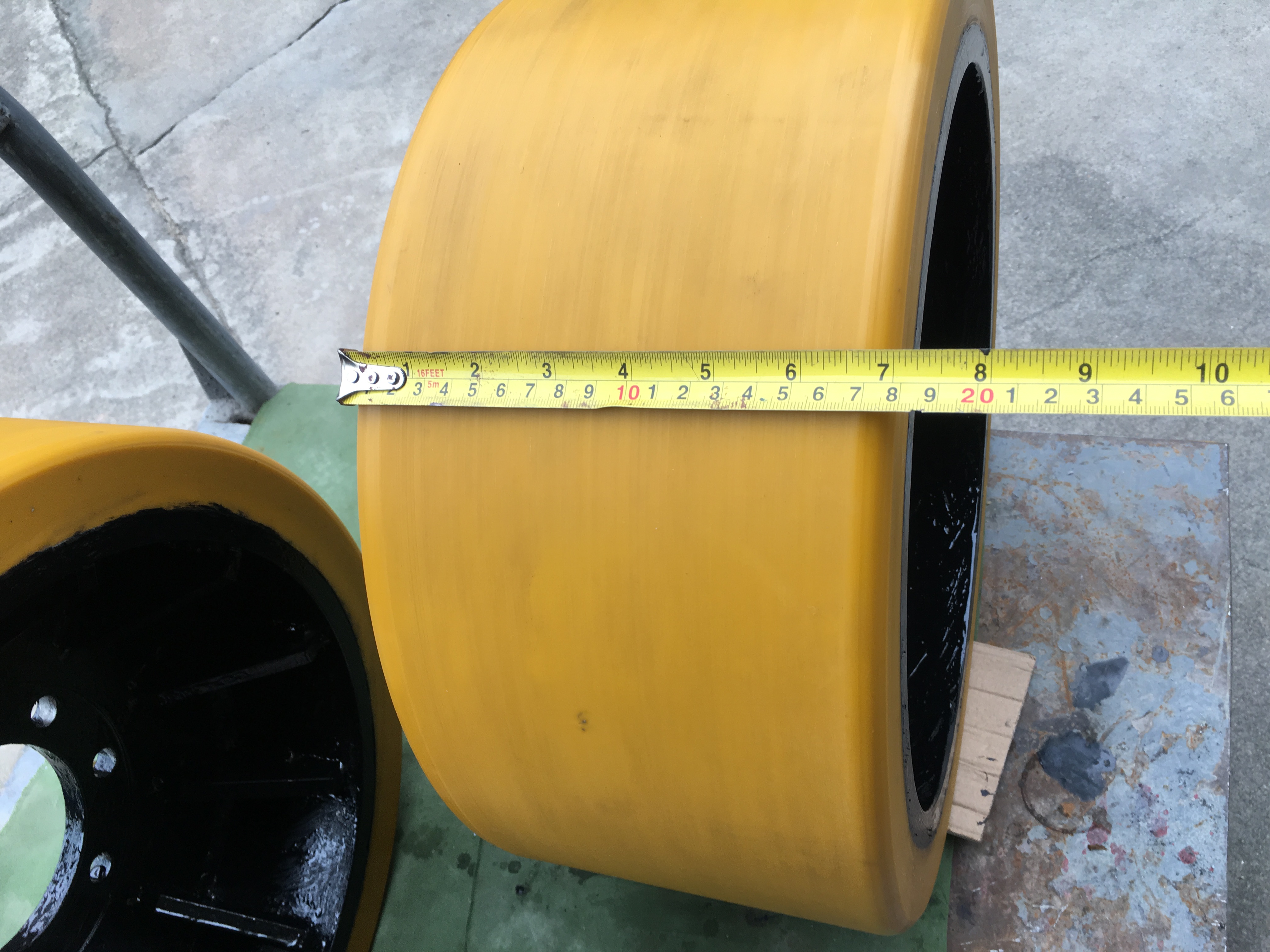

W400100-DCPU-H186 400x100mm 带键槽PU单轮01.JPG




江龙精密脚轮开放全系产品STEP/IGES三维模型下载,提供非标脚轮数字孪生服务,诚邀客商对接江龙全新WEB 3D交互模块,实现可视化决策闭环,加速订单成交。

       Jianglong Precision Casters now offers open downloads of STEP/IGES 3D models for its full product line and provides digital twin services for custom caster solutions. We invite partners to explore Jianglong’s all-new WEB 3D interactive module, enabling visual decision-making loops to accelerate order conversion.



阳江市江龙精密脚轮有限公司

JIANGLONG PRECISION CASTER Co.,LTD.


电话(TEL).86-662-3505491 / 2829599

传真(FAX).86-662-3506528

手机(Mob)   86-662-3505491 / 2829599   梁小姐 / Ms. Liang

网站(WEB).https://www.casterpartner.com

邮箱(E.MAIL).jlcaster@vip.126.com

地址.广东省 阳江市 江城区 沿江南路 577号 529500 / NO.577, YANJIANG SOUCH RD., YANGJIANG GUANGDONG CHINA 529500

ADD.YANJIANG SOUTH RD.INDUSTRIAL ZONE YANGJIANG GUANGDONG CHINA
